Biomass Briquetting Equipment

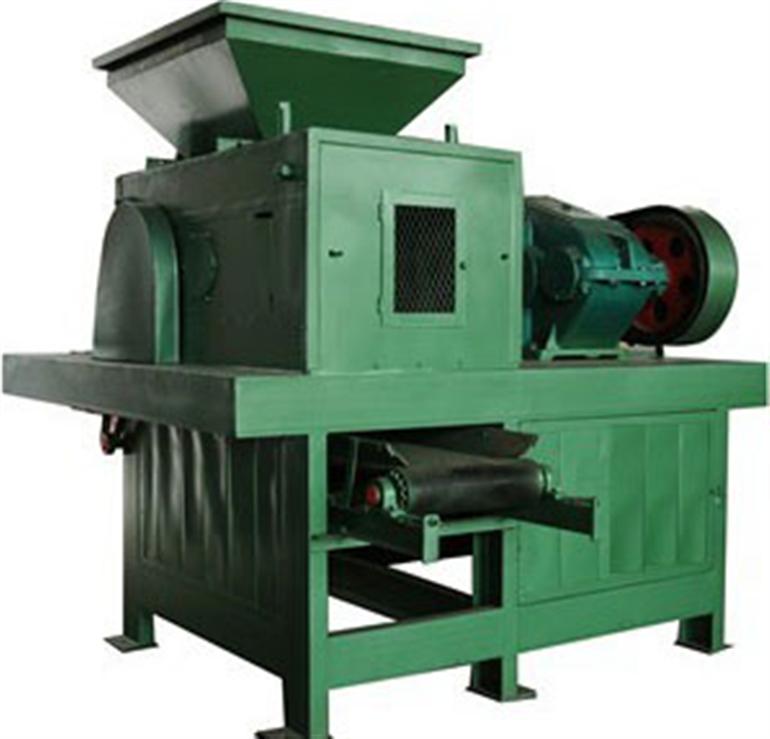

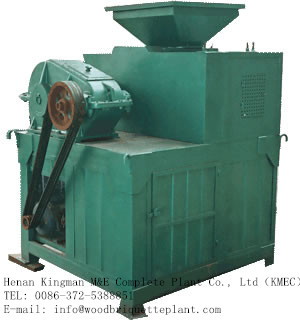

Ball Press Machine-TLSG

Ball press machine for FGD gypsum

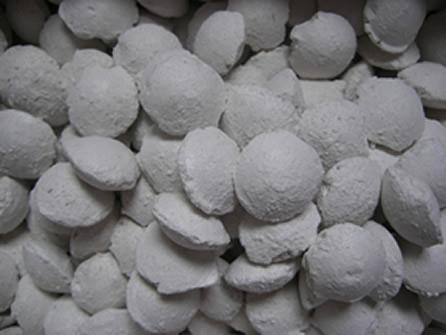

The model is mainly applied to pressing flue gas desulfurization (FGD) gypsum powder as ingredient of cement. Over the past decade, FGD gypsum has been popular with architecture material industry, featuring high density, high efficiency yet low power consumption and maintenance costs. The pressed briquettes can easily drop from mould.
Wet desulphurized gypsum through the machine can be extruded under high pressure without binding agent added. The purity of briquettes can further edges up. Besides, drying is not necessary in this regard so that a production line for it will be well connected and later-on retrofitting will become way easier. The high-density briquettes can help reduce packaging costs and have transport smooth. Products from the machine are largely demanded by power plants and cement factories. Wasted material through the model can be fully put into use in a recycled way. You are welcome to visit our factory for detailed inspection and learning.



Main technical parameters
Model Roller Dia. (mm) Yield(t/h) Power (kw) Pressure regulating device Briquette size
TLSG450 450 3-6 13 Mechanical or Hydraulic As per clients' requests
TLSG500 500 6-10 18 Mechanical or Hydraulic As per clients' requests
TLSG650 650 10-15 25 Mechanical or Hydraulic As per clients' requests
TLSG850 850 15-25 30-55 Mechanical or Hydraulic As per clients' requests
TLSG1000 1000 25-35 75-130 Mechanical or Hydraulic As per clients' requests



-------------------------------------------------------------------------------------------------------------------------------------------------
Link to other ball press machines:
