Biomass Briquetting Equipment

ZBJ-CY Briquette Machine

ZBJ-CY sawdust briquette machines can press the straw (agricultural waste) into briquette. The product is biomass fuel. It can be run with electrical power and diesel power. the raw materials are all kind of agricultural wastes. and the moisture can be 5%-30%. The diameter of the raw material is from 8mm to 70mm.

The series consist of belt loading type and screw loading type.

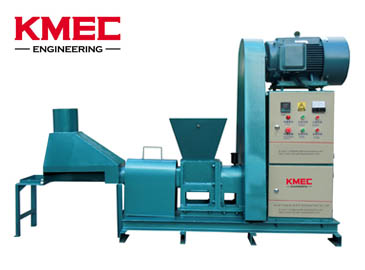

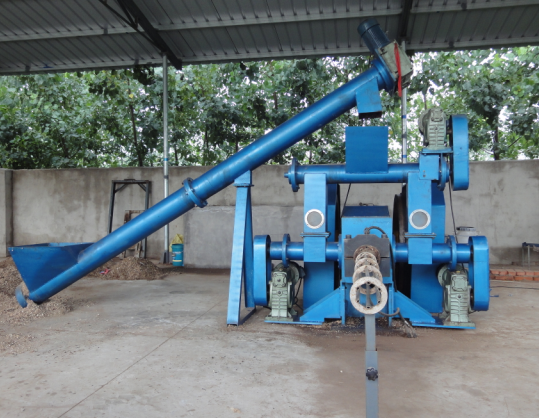

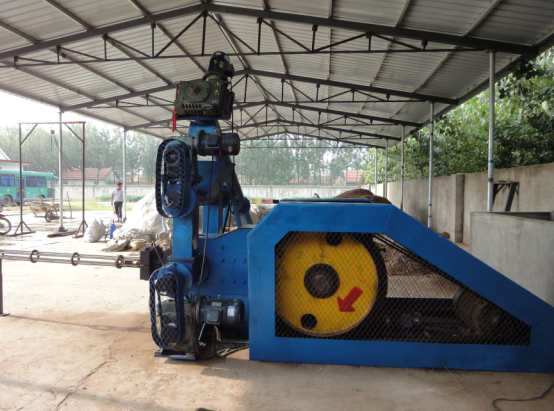

 Sawdust Briquette Machine Sawdust Briquette Machine

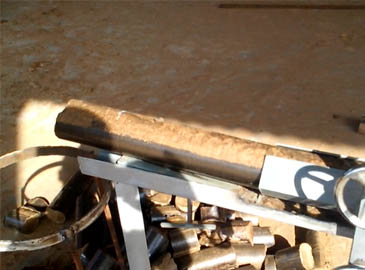

Working Video Making Briquettes

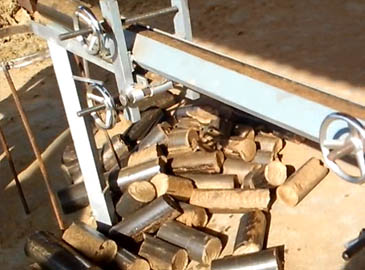

Making Briquettes Making Briquettes

Advantages:
1.Alternative power supply: the ZBJ-CY series briquette machines can be driven by either electric motor or diesel engine to meet the demands from different clients.
2.Combined with automatic auxiliary equipment, the briquetting productivity can be enhanced impressively.
3.An extensive spectrum of material application: both agro and forestry waste can be manufactured by the series briquette machines. Namely, as follows:

Agro waste:cotton stalks, corn cobs, soybean straw, sorghum stalks, millet stalks, rice husks, peanut shells, wheat straw etc.
Forestry waste:wood shavings, bagasse, pomace, pulp sludge, pasture, bark, bamboo shavings, sawdust, leather scraps, etc.
All the raw materials above can be processed into pellets and briquettes, with a higher fuel value suitable for domestic fireplaces, small and medium sized biomass boilers and industrial power and heating productions.


4.Long service period: made of special alloy steel feature high degree of wear resistance, the mould lifespan can be utterly prolonged.
5.Of the series, 2 main types of briquette press can be chosen: the extruding briquette machines with abrasive disc and the mechanical stamping briquetting machines. The abrasive disc extruding type can generally be further divided into three kinds: Ring die design, flat plate design, and ring & flat die design. The diameter of briquettes produced by abrasive disc extruding briquette machines is 30mm * 30mm, while the diameter of mechanical stamping briquetting presses can reach 80mm.
6.Moreover, the shape of mechanical stamping briquettes is diverse, round, square, hexagonal, perforated and other tailored forms.

Pellets

Parameter table:
Model Output (kg/h) Main Engine Size (mm) Weight (kg) Total Power (kg) Finished Fuel Rod's Diameter (mm)
ZBJ-CYB500 500 3200*1500*1500 4500 35 φ50
ZBJ-CYB1000 1000 3200*1500*1500 7000 61.5 φ70/φ30/φ22/φ10/φ8

Mould (die) parameter table (taking sawdust as feedstock with the moisture content of 15%)
Model (pore size) 8mm 10mm 22mm 30mm 70mm
Pore number 61 37 7 4 1
Capacity (kg) 950kg 900kg 820kg 880kg 1200kg

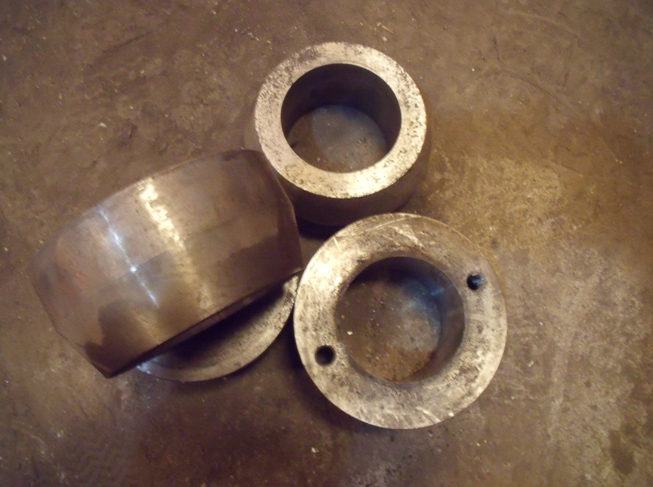

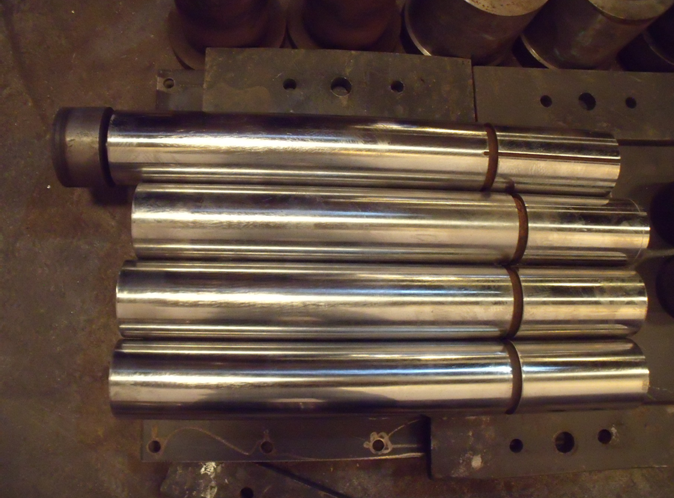

STAMPING ROOF BRIQUETTE MACHINE MOULD BRIQUETTE MACHINE


Screw loading type
Model Output (kg/h) Main Engine Size (mm) Weight (kg) Total Power (kg) Finished Fuel Rod's Diameter (mm)
ZBJ-CYS500 500 3200*1500*1500 4000 35 φ50
ZBJ-CYS1000 1000 3400*2000*1800 7000 61.5 φ70/φ30/φ22/φ10/φ8

Mould (die) parameter table (taking sawdust as feedstock with the moisture content of 15%)
Model (pore size) 8mm 10mm 22mm 30mm 70mm
Pore number 61 37 7 4 1
Capacity (kg) 950 900 820 880 1200

--------------------------------------------------------------------------------------------------------------------------------------------------
Alternative finished products: different from ZBJ-ZT Series and ZBJ-CY Series briquetting presses, the series briquette machines can produce either biomass pellets or briquettes. KMEC is capable of offering clients with either pellet die or briquette die to fulfill requirements from a wider scope of customers.

ZBJ-ZT Sawdust Briquette MachineZBJ-LX Briquette Machines
